electrical ladder tray

  • 1
  • 2
  • 3

Brand Name : BDINDUSTRIAL

Model Number : Fire Rated Cable Ladder

Certification : BS 476, EN 1363, UL, IEC 60331

Place of Origin : CHINA

MOQ : 100 m

Price : 10-20 USD

Payment Terms : L/C,D/P,T/T

Supply Ability : 50000m/week

Delivery Time : 15-25 work days

Packaging Details : Carton, Box, Wooden carton

Product Name : Fire Rated,Cable Ladder

Keywords : Fireproof Cable Ladder

Material : Galvanized Steel,Stainless Steel, Powder-Coated Steel.

Height : 75-250 mm/3-10 in,etc

Width : 150-900 mm/6-36 in,etc

Thickness : Side Rail: 1.5-3.0 mm; Rung: 2.5-5.0 mm

Rung Spacing : 225 mm, 300 mm, 450 mm（customize)

Support Span : 1.5-9 m

Contact Now

Fire Rated Cable Ladder

The Bending Fire Rated Cable Ladder typically made from galvanized steel, stainless steel, or specially coated steel.Fireproofing is achieved by applying an intumescent coating to the ladder.

electrical ladder tray

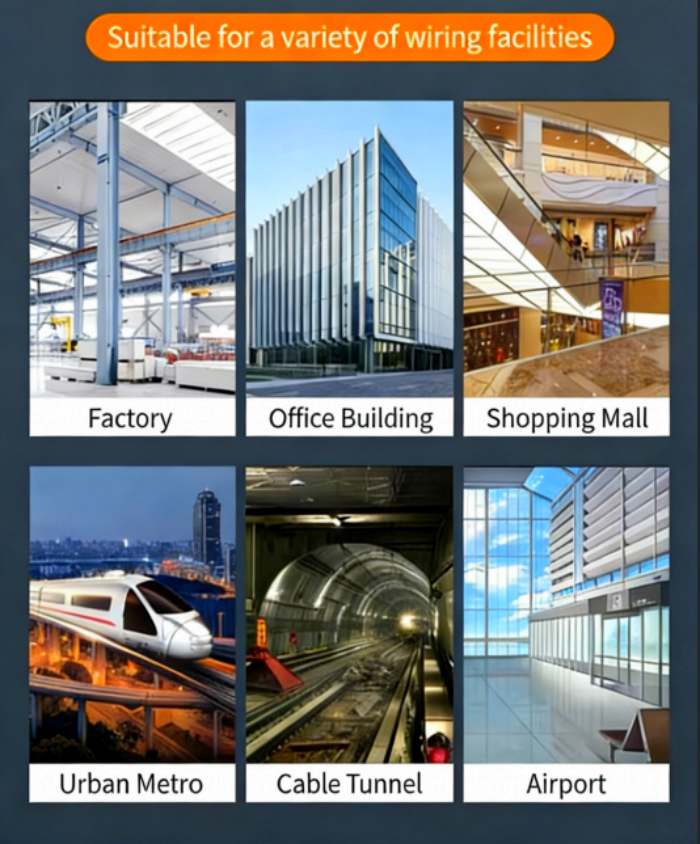

Primary Applications:

1.High-rise buildings

2.Hospitals and healthcare facilities

3.Data centers

4.Transportation hubs (airports, subways)

5.Industrial plants with critical infrastructure

6.Any building where maintaining emergency system operation during fire is mandatory.

electrical ladder tray

Material & Specifications

The specific specifications of the Bending Fire Rated Cable Ladder Type U depend on the project.

Material Hot-Dip Galvanized, Pre-galvanized,Stainless Steel (304, 316), Powder-Coated Steel
Ladder Width

150mm (6"),300mm (12"), 450mm (18"), 600mm (24"), 750mm (30"), 900mm (36")
Side Rail Height

75mm(3"),100mm(4"),150mm (6"),200mm(8"),250mm(10")
Rung Spacing 225 mm, 300 mm, 450 mm
Rung Shape/Type Round, Square, "T-Bar"
Maximum Support Span 1.5m, 3m, 4.5m, 6m, 9m
Accessories Horizontal Bends (30°, 45°, 90°), Vertical Bends, Reducers, Crosses, Tees.
Support Methods Center Hung (Rod & Clamp), Wall Mounted (Cantilever Brackets), Underfloor

Advantages

Bending as a excellent fire rated cable ladder factory possesses the following qualities:
1.Complete certification
2.Stable quality control
3.Strong technical support
4.Reliable delivery
5.Professional after-sales service

electrical ladder tray

electrical ladder tray

electrical ladder tray
